Case Making Machines

Case Making Machines

Get Latest Price

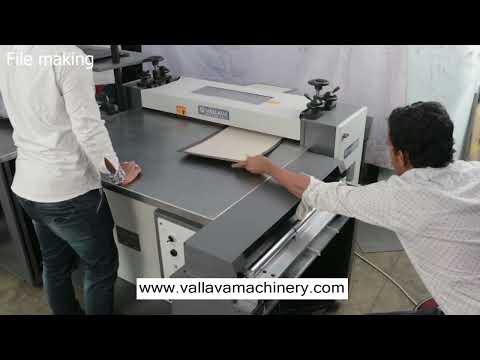

The Case Making Machine unit completes the turning in for all Four sides (by Passing Two time). Rollers & brush will rotate to fold the flap within few seconds by reverse & forward system. The PLC-based reverse forward rotating facility is provided to the Silicon Rollers and brush. There is a PLC technology for rapid high-speed operation. Alternately manufacturing of (inner pasting) files & table top calendars, conveyor and all rollers shall be operated in the single direction by the program.


High Quality Mufti-use Hard Case Binding Machine
Experienced engineers, dedicated team, Innovative design and heavy-duty construction makes sure of consistent high quality PLC multi-product hard case binding machine. QUIKR- This modular single brush turning cum pneumatic turning unit machine . This modular double brush turning cum pneumatic turning unit machine are suitable for book binders, printers and bulk stationery manufacturers like box file Mfrs, notebook etc. Both the models are also designed far variety of case bindings, as demanded by the market.

Modular Binding System.
The Binding system provides the facility for a Four Side fold in Pneumatic system or ea Four Side fold in brush lamina unit or Two side fold in Pneumatic system and two side fold in brush infinitum. Only calendaring shall be possible by setting on single direction mode while interesting. Special programmer for paper box Mfrs.

Rectifiable Proven Gluing System
The machine has high-speed paper feeding system &single operator gluing unit in QUIKR and two operator gluing units . Operator can operate the machine wallow touching the glue and this will protect the case from dust accumulation. Cartridge type glue tank with separate hot water tank is provided. Precise control of paper releasing tension blades for proper paper release and high-speed run helps in avoiding the paper stuck /role in the glue rollers. It has the maximum high-speed paper feed system of this kind in the market all-present.

High speed Double Brush-Turning system
The Double station brush aiming completes the turning in for all four sides. Rollers & brush will continuously rotate to fold the flap within few seconds. In order to ensure long life of the rollers unit, roller's reverse rotation is eliminated. The PLC based reverse rolling facility is provided for the conveyor system. This is must for regular rapid high-speed operation. Alternately, for manufacturing of files & table top calendars(inner pasting), conveyor can be operated in single direction.

Unique Dust-Free Calendaring System
Quality Silicon rollers are used in the calendaring unit, which can be cleaned easily. Fine rollers control knob-cum-locker is provided for constant disengagement of upper rollers. This is to ensure that case is free from glue and dust on front side especially when using costly wrappers like white paper, wedding card products, quality binding cloths etc. It is a major requirement of hard case binder today.

Flexible Conversion for High Productivity
Variable speed gluing application system, glue thickness adjustable system, double side gauge unit, Paper table, automatic & variable timing Pneumatic fuming unit cum ricking-in station, heavy-duty silicon rollers to press I calendaring for super finishing hard case cover. All the operators can comfortably sit & work, because there is no pedal operating system. Provision of Separate Pneumatic taming unit station to produce 6 mm board exam pad and 250 gram wedding card production board to board pasting is possible.

Box File Pasting Machine

Get Latest Price

We are offering Case Making Excella Machine to our clients.

High Quality Mufti-use Hard Case Binding Machine
Experienced engineers, dedicated team, Innovative design and heavy-duty construction makes sure of consistent high quality PLC multi-product Hard Case Binding machine. Notebook Mfrs., and Diary Mfrs. etc. Both the models are also designed far variety of case bindings, as demanded by the market.

Modular Binding System.
The Binding system provides the facility for a four side fold in pneumatic system or side fold in brush lamina unit or two side fold in pneumatic system and two side fold in brush infinitum. Only calendaring shall be possible by setting on single direction mode while interesting.

Rectifiable Proven Gluing System
The machine has high-speed paper feeding system & single operator gluing unit in QUIKR and two operator gluing units in EXCELLA. Operator can operate the machine wallow touching the glue and this will protect the case from dust accumulation. Cartridge type glue tank with separate hot water tank is provided. Precise control of paper releasing tension blades for proper paper release and high-speed run helps in avoiding the paper stuck /role in the glue rollers. It has the maximum high-speed paper feed system of this kind in the market all-present.

High Speed Double Brush-Turning System (EXCELLA)
The Double station brush aiming completes the turning in for all four sides. Rollers & brush will continuously rotate to fold the flap within few seconds. In order to ensure long life of the rollers unit, roller's reverse rotation is eliminated. The PLC based reverse rolling facility is provided for the conveyor system. This is must for regular rapid high-speed operation. Alternately, for manufacturing of files & table top calendars(inner pasting), conveyor can be operated in single direction.

Unique Dust-Free Calendaring System
Quality Silicon rollers are used in the calendaring unit, which can be cleaned easily. Fine rollers control knob-cum-locker is provided for constant disengagement of upper rollers. This is to ensure that case is free from glue and dust on front side especially when using costly wrappers like white paper, wedding card products, quality binding cloths etc. It is a major requirement of hard case binder today.

Flexible Conversion for High Productivity
Variable speed gluing application system, glue thickness adjustable system, double side gauge unit, Paper table, automatic & variable timing Pneumatic fuming unit cum ricking-in station, heavy-duty silicon rollers to press calendaring for super finishing hard case cover. All the operators can comfortably sit & work, because there is no pedal operating system. Provision of Separate Pneumatic taming unit station to produce 6 mm board exam pad and 250gm wedding card production board to board pasting is possible.

Case Maker Machine

Get Latest Price

We are offering Case Making Premier Machine to our clients.

Economic High quality Multi-use Hard Case Binding Machine
Experienced engineers, dedicated team, Innovative design and heavy duty construction makes sure of consistent high quality multi product hard case binding machine an economic costs. Premier model- Is designed for variety of case binding jobs, demanded by the modem market. This semi-automatic machine 0 made using rust resistant stainless steel glue rollers & working table for smooth & neat working. Premier Plus model- Is designed for doubling the production capacity compared to our premier model. Premier Plus retains all the standard features of premier model. This sear machine is made using rust resistance stainless steel glue rollers & working table for smooth & neat working.

Flexible Conversion For High Productivity
Easy and fast hard case binding (Premier- Up to 250 Cases/ Premier Plus- Up to 400 Cases/ Hour) bottom gluing machine 'Variable speed gluing system 'Adjustable Glue thickness system - Adjustable Gauge unit & Paper table "Adjustable (Premier- Single/ Premier Plus- Double) Pneumatic turning unit(Programmable 1-10 second for variety of paper and material) "Heavy duty Silicon rollers installed for pressing / calendaring for dust free & air bubble free finishing. All operators can comfortably sit & work, because, there is no pedal operating system.

Valuable Options For Variety Of Operations Demands
Main on/off red fight indicator 'Glue heating cut-off indicator "Water heating degree tuner" Variable speed glue rollers speed tuner Emergency OFF push buttons to both glue and calendaring units Inching & reverse / forwarding facility for both gluing unit and calendaring rollers with conveyor*Programmable Pneumatic tuning-in system by variable timing mode is there to bind maximum thickness of Papers&Boards.

High-Technocratic Turning System
Single turning unit in Premier and Two turning wits in Premier Plus. Turning system is pneumatic in nature and does not have pedal system. The operator can program the stroke timing by precision of Seconds. This will be used for holding necessary time of turning bar movement, to hold the glued maximum gain paper, Renege or cloth, and hulling-in to paste by proper manner. The Pill unit can be moved front & back as per the Hard Case sire as per the operator's convenience. An adjustment is provided to process hard boards up to b MM thickness with a Unique Locking System.

Unique Dust-Free Calendaring System
Four nos. of quality silicon rollers (2 upper and 2 lower) are used which are easy to clean and provide proper pressure for removing air bubbles. Fine rollers control Knob- Cum- Locker is provided for constant disengagement of upper and lower calendaring rollers while running the job. This is to ensure that case is free from glue M dust on front 'de especially when using costly wrappers like White papers, Wedding Card Products. Quality binding clothes ets.. Inching and Reverse Forwarding facility given to set any thickness hard board & MDF Board from 1 mm to 6 mm and all 4 rollers engaged with hard and gears. Premier Plus calendaring unit with conveyor system provided for both pneumatic turning Limit operator for speed production. It is a major requirement of Hard case binders today.
